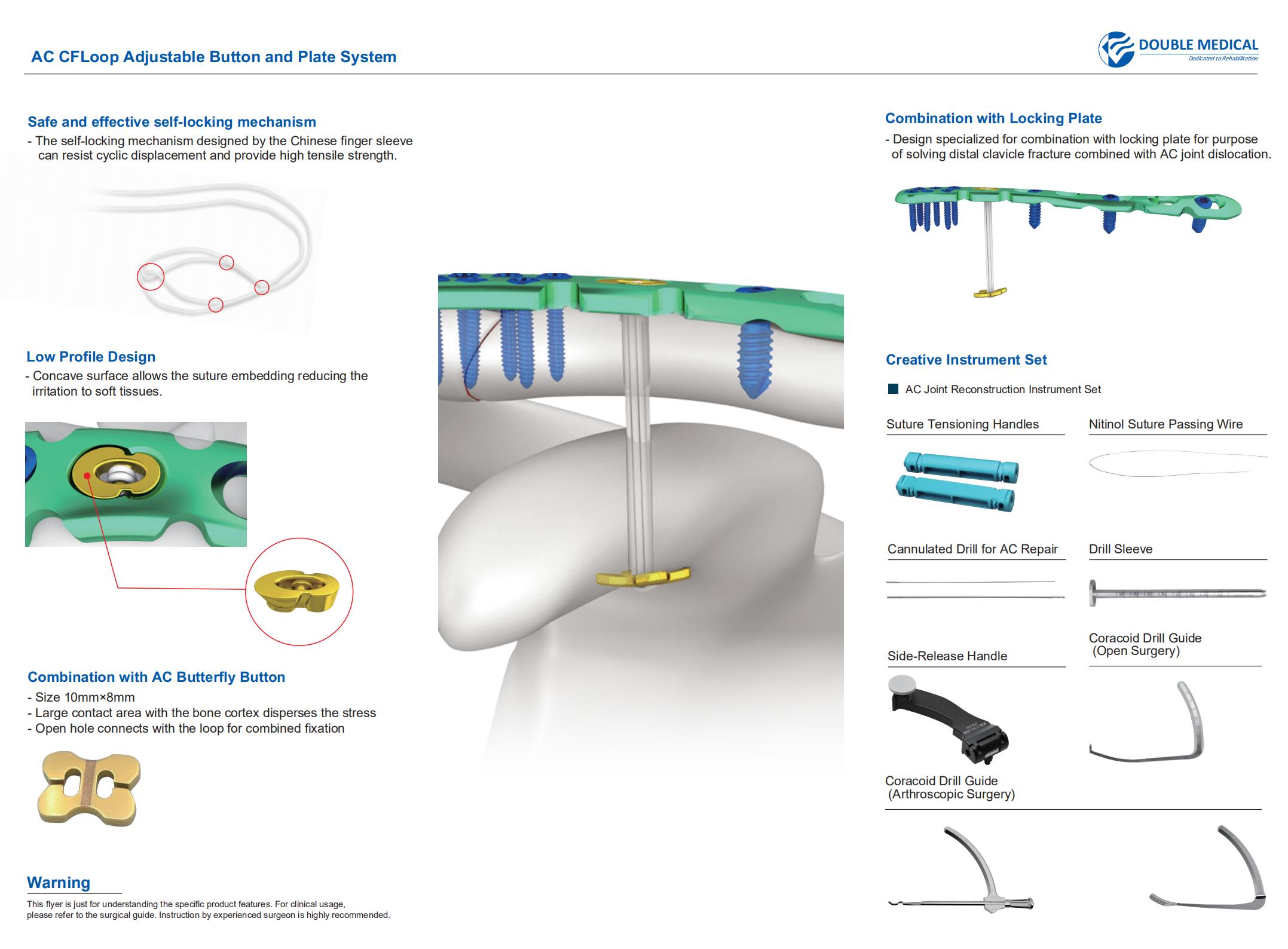

AC CFLoop adjustable button and plate system

Implants:

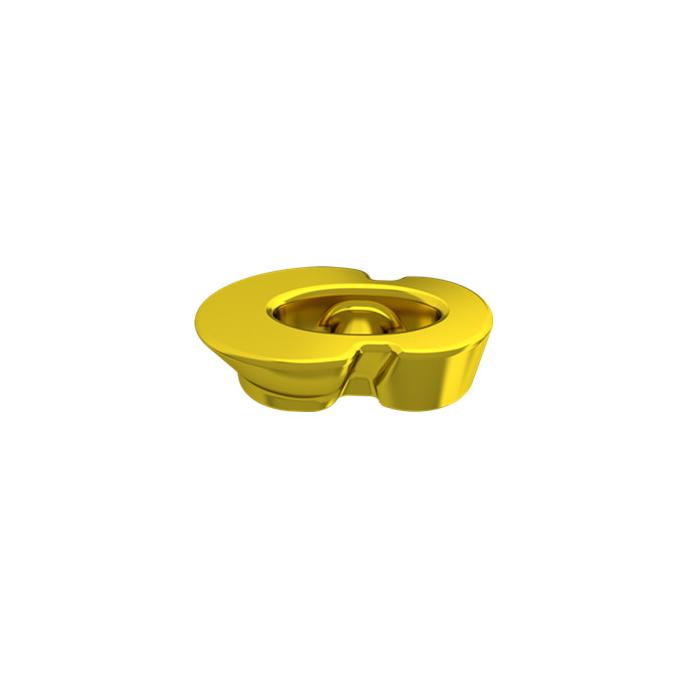

AC CFLoop Adjustable Button System

• Low profile design

1. 10mm raised edge and 5mm base
2. Insert the base into the clavicular unicortical tunnel reducing the risks of suture abrasion and tunnel expansion
3. Concave surface allows the suture embedding reducing the irritationto soft tissues.

• 2-0# Traction line facilitates leading and splitting

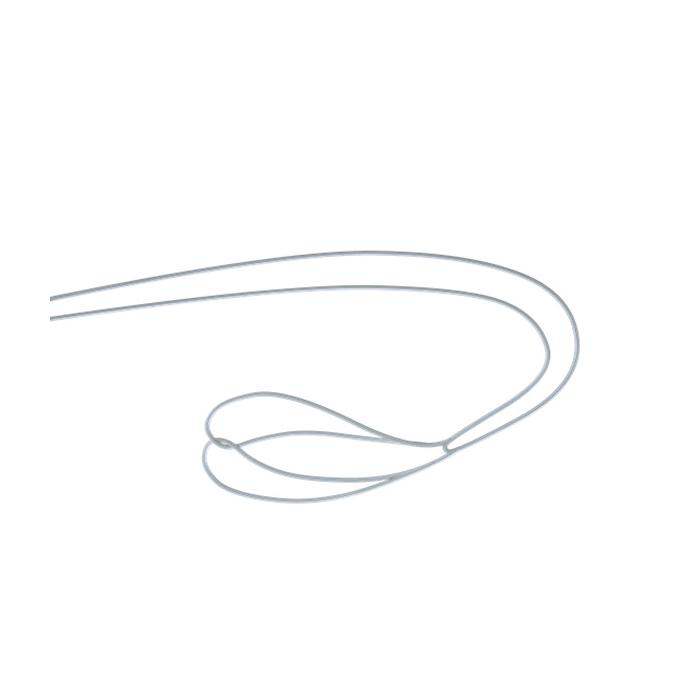

• Safe and reliable fixation: 8 polyethylene fibers of ultra high molecular weight provide more than 1500N pull-out strength

Combination with AC Butterfly Button

• Specification: 10mm*8mm
• Optimized contact with cortex bone to distract stress
• Open holes design to acheive better fixation with the loop

Combination with Locking Plate

• Design specialized for combination with locking plate for purpose of solving distal clavicle fracture combined with AC joint dislocation

Creative Instrument Set - AC Joint Reconstruction Instrument Set

• Suture Tensioning Handles
• Nitinol Suture Passing Wire
• Cannulated Drill for AC Repair
• Drill Sleeve
• Side-Release Handle
• Coracoid Drill Guide (Open Surgery)
• Coracoid Drill Guide (Arthroscopic Surgery)
