Compound compression system CCS

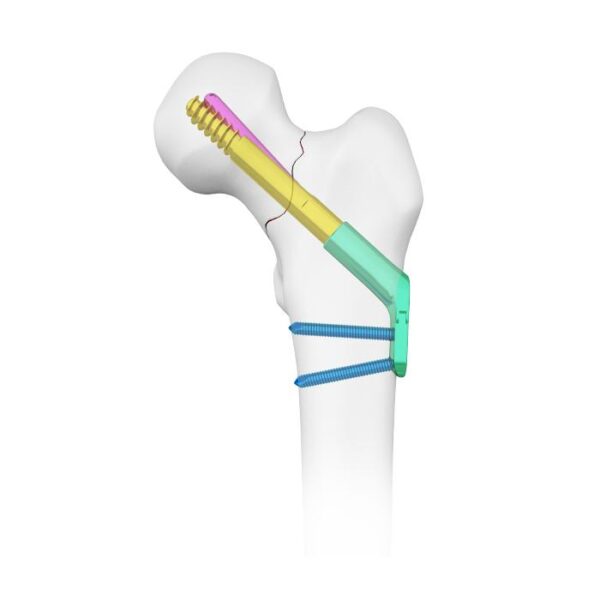

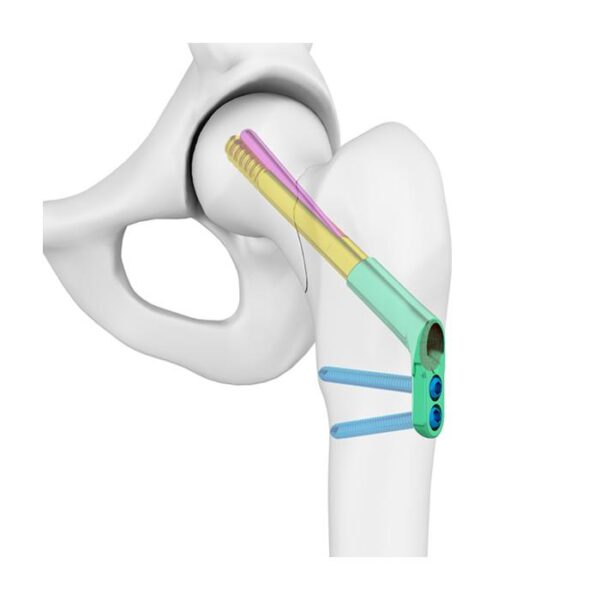

Compound compression system (CCS) consists of lag screw, antirotation screw, fixation plate, locking screw, and end cap. It is indicated for Femoral neck fractures, including basilar, transcervical, and subcapital fractures, in adults and adolescents in which the growth plates have fused or will not be crossed.
  • Product Detail

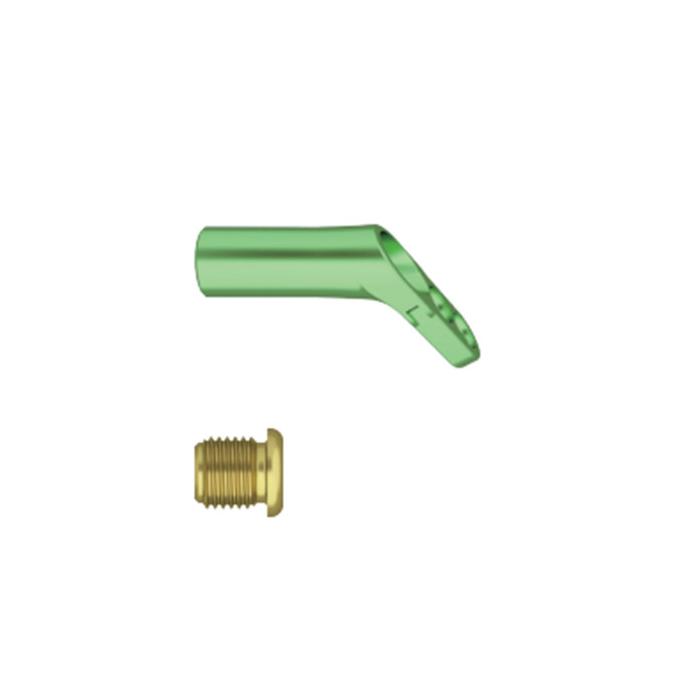

CCS Fixation Plate


  • The design of 130° CCD angle highly fits to bones
  • Designed to provide optimal implant footprint
  • Accommodates standard 5.0mm Locking Screws to provide angular stability

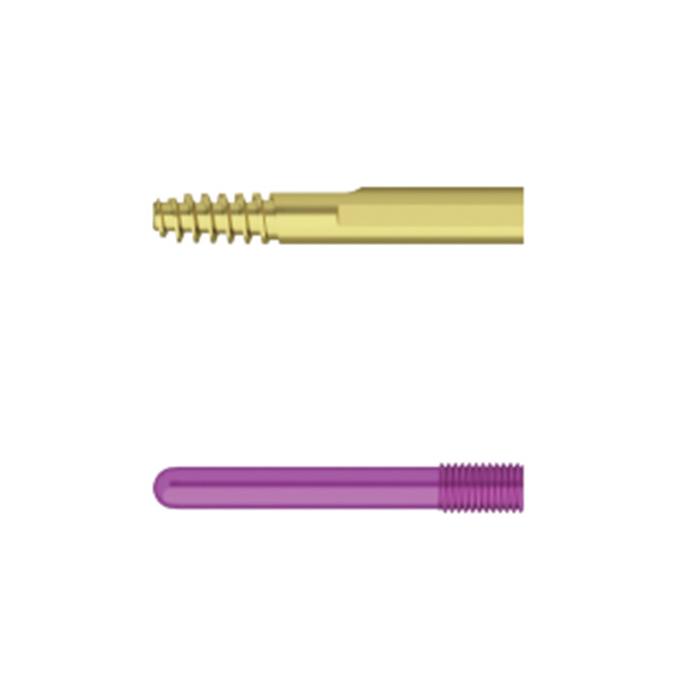

CCS Antirotation Screw



  • CCS Lag Screw and CCS Antirotation Screw provides rotational stability (5° divergence angle)
  • Allow implant placement even in a small femoral neck.


CCS Lag Screw


  • Tip of thread avoid fracture rotation and displacement
  • Provide linear pressurization to maintain reduction during insertion
  • Provide higher angular stability and effectively prevent reduction loss.


CCS Insertion Handle


  • Insert an Guide Wire as an antirotation wire to prevent any inadvertant rotation of the femoral head
  • Provide 10mm pressure distance intraoperatively, and provide 15mm sliding pressure distance postoperatively
  • Corresponding pressure distance is highlighted in this surgical technique
  • Serve for entire system, including CCS Fixation Plate, CCS Lag Screw, CCS Antirotation Screw, and 5.0mm Locking Screw


CCS Correction Guide


  • Three types of adjustments are possible:
  1. Parallel correction with new entry point anterior (5mm)
  2. Angle correction towards anterior (5°)with new entry point superior (5mm)
  3. Angle correction towards anterior (5°)with same entry point


Indication:


  • The Compound Compression System (CCS) is indicated for femoral neck fractures, including basilar, transcervical, and subcapital fractures, in adults and adolescents (12-21) in which the growth plates have fused or will not be crossed.


Contraindications


The specific contraindications for the compound compression system (CCS) include:


  • Petrochanteric fractures
  • Intertrochanteric fractures
  • Subtrochanteric fractures
