AAN Ankle Arthrodesis Nail

Ankle Arthrodesis Nail is designed for severe foot and ankle deformity and arthritis.
  • Product Detail

Indications:

  • Severe foot and ankle deformity
  • Arthritis
  • Instability and skeletal defects, including but not limited to after tumor resection and neuro-osteoarthropathy (Charcot's foot)
  • Avascular necrosis of the talus
  • Failed joint replacement or failed ankle fusion
  • Distal tibial fracture and non-unions
  • Osteoarthritis
  • Rheumatoid arthritis and pseudoarthrosis


Contraindication:

  • Active infection
  • Peripheral vascular neuropathy
  • Young patients

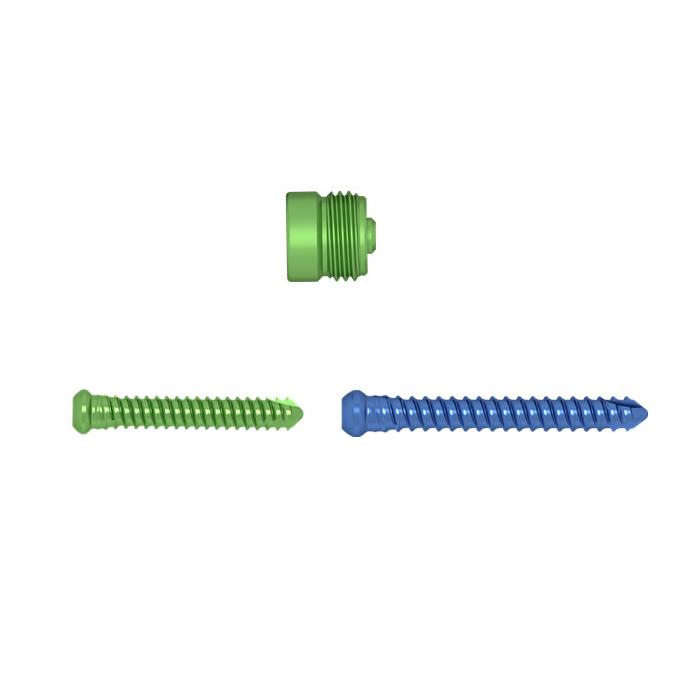

Screws:

  • 5.0mm Locking Screw
  • 6.0mm Locking Screw
  • End Cap

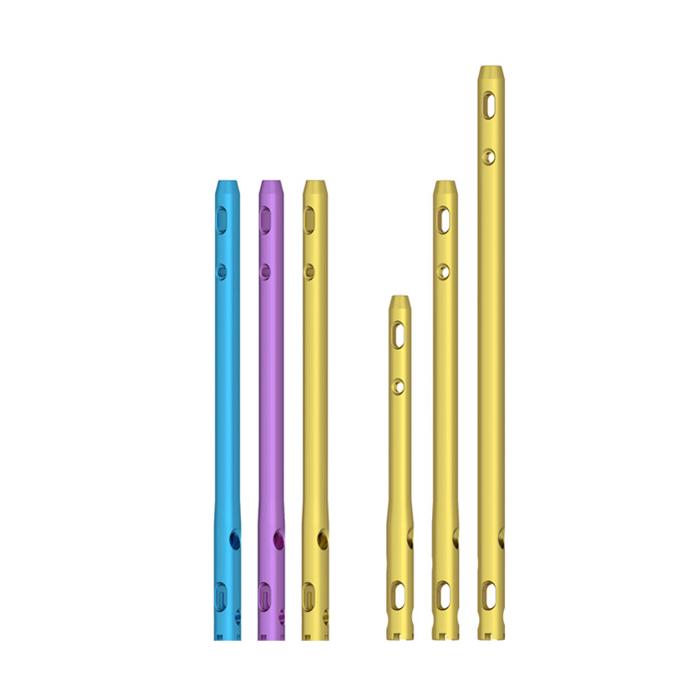

Ankle Arthrodesis Nail:

  • Provide different diameters and lengths for more clinical choices.
  • Different colours are easy to distinguish


Compression Nut in Distal Sliding Hole:

  • Distal sliding hole allows maximal 5mm compression distance.

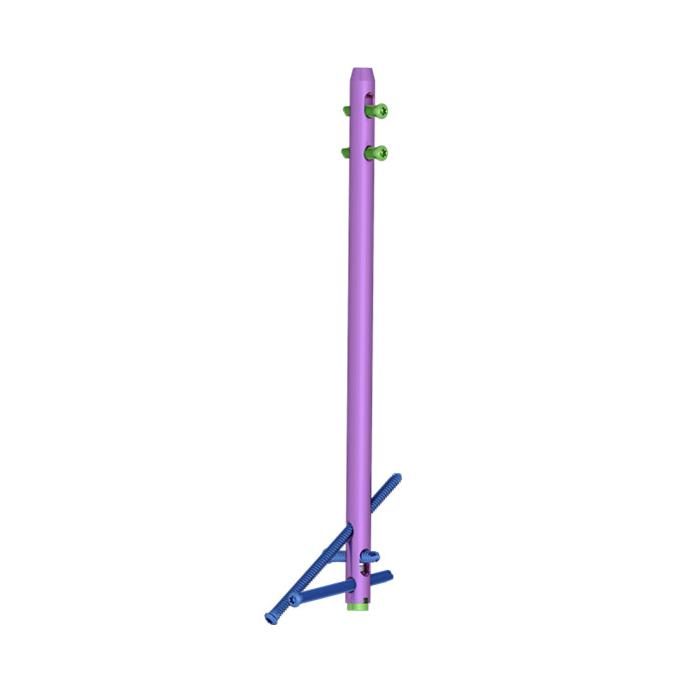

Static and Dynamic Locking Holes:

  • Provide Static and Dynamic Locking Holes in the proximal.

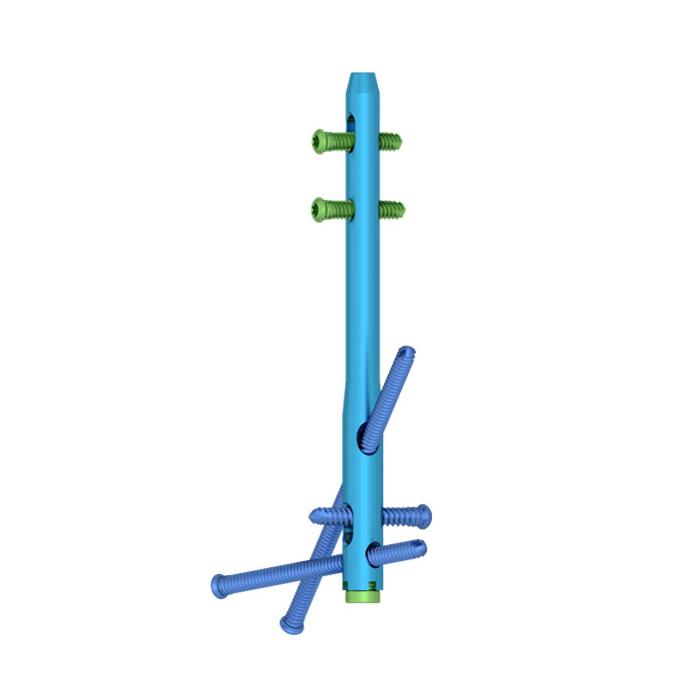

Distal Multi-planer Screws Crossing Locking Holes:

  • Cross-joint fixation to enhance the stability of the fusion.
  • The screw inserted obliquely into calcaneal anterior process or calcaneocuboid joint to enhance pullout strength and stability.

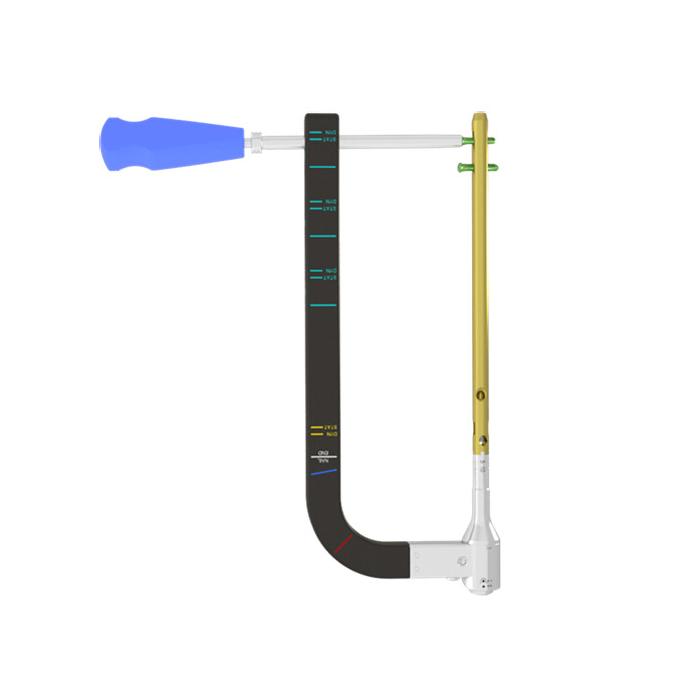

Carbon Fiver Aiming Shaft:

  • One piece of Aiming shaft which is made of carbon fiber material ensures locking accuracy.
  • Simplify operation process and shorten operation time.


Locking screws:

  • Self-tapping groove design, for easier insertion.
  • Torxdrive recess of screw head design to reduce screw loose.
  • Proximal dynamic and static holes mach with 5.0mm locking screw.
  • Three distal crossing holes match with 6.0mm locking screw.


End Cap:

  • Prevent soft tissue from growing in.
