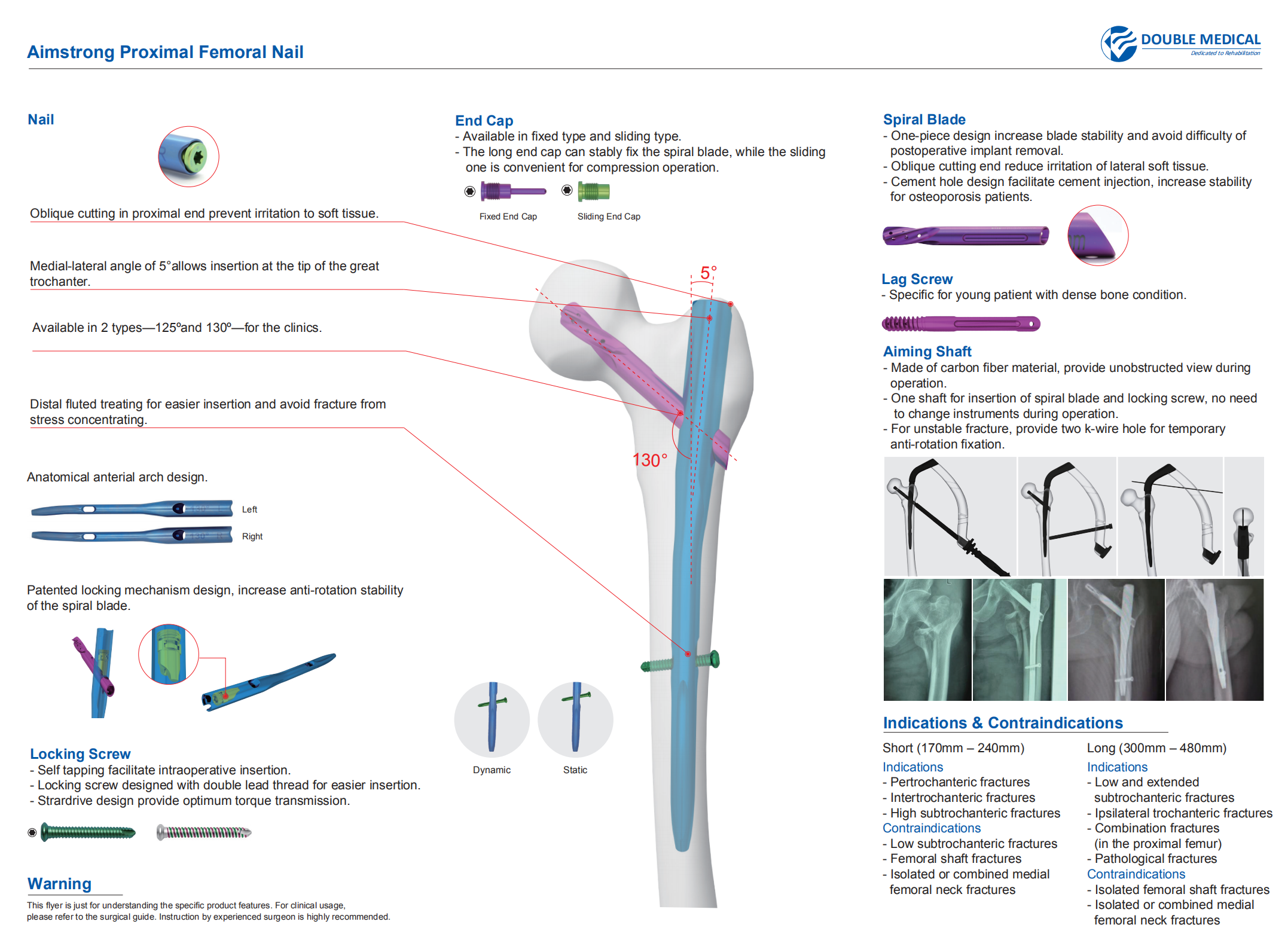

APFN Aimstrong Proximal Femoral Nail

Features:

Nails

• 130° and 125° CCD angle provide more option for different anatomy.
• Medial-lateral angle of 5° allows insertion at the tip of the greater trochanter.
• Lateral flat cut design for easier insertion and lower pressure on the lateral cortex.
• Distal fluted treating makes the insertion more easier and reduces the stress on the bone at the tip of the nail.

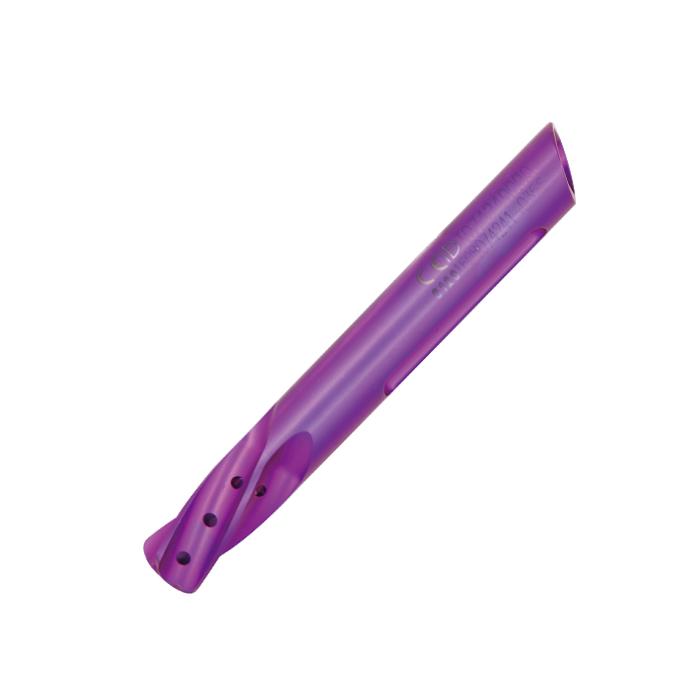

Spiral Blade

• One-piece design increase blad stability and avoid difficulty of postoperative implant removal.
• Oblique cutting end of reduce irritation of lateral soft tissue.
• Cement hole design facilitate cement injection increase stability for osteoporosisi patients.
• Shaft groove in conjunction with anti-rotation bolt not only provide anti-rotation strength but also prevent blade back out.

Lag Screw

• Special for young patient with good bone quality.
• Oblique cutting end reduce irritation of lateral soft tissue.
• Cement hole design facilitate cement injection, increase stability for osteoporosis patients.
• Shaft groove in conjunction with anti-rotation bolt not only provide anti-rotation strength but also prevent blade back out.

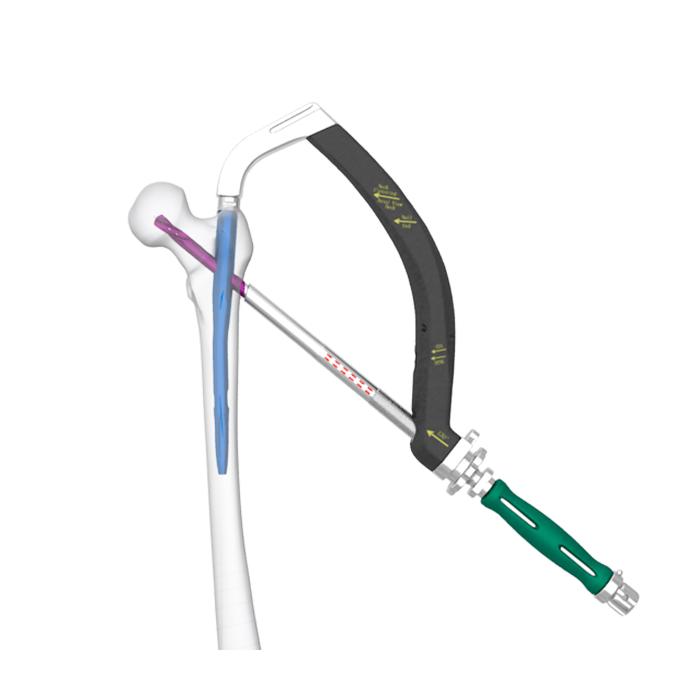

Aiming Jig

• Made of carbon fiber material, provide unobstructed view during operation
• One jig for insertion of spiral blade and locking screw, no need to change instruments during operation.
• For unstable fracture, provide two K-wire hole for temporary anti-rotation fixation.

Indications:

Short (170mm-240mm)

• Pertrochanteric Fractures
• Intertrochanteric Fractures
• High Subtrochanteric Fractures

Long (300mm-480mm)

• Low and Extended Subtrochanteric Fractures
• Ipsilateral Trochanteric Fractures
• Proximal Femur Combination Fractures
• Pathological Fractures

Screws:

• 4.9mm Locking Screw
• Aimstrong Spiral Blade
• Aimstrong Lag Screw
• Aimstrong Straight Blade

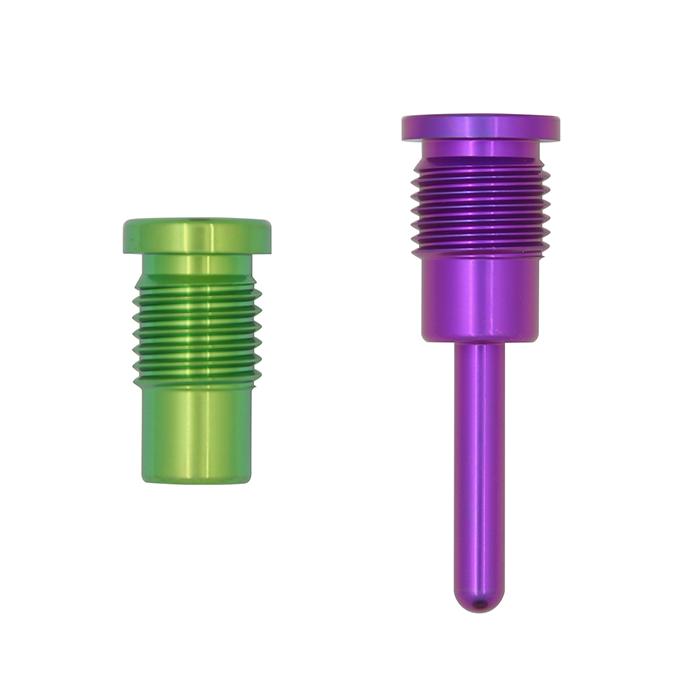

• Aimstrong Fixed End Cap
• Aimstrong Sliding End Cap

Instrument Set:

• Aimstrong Proximal Femoral Nail Instrument Set
