3.4mm mini titanium plate
3.4mm mini titanium plate 3.4mm mini titanium plate 3.4mm mini titanium plate 3.4mm mini titanium plate 3.4mm mini titanium plate

CFLoop adjustable button

The mini titanium plate with 3.4mm width can pass through the 3.5mm bone tunnel to retain more bone. And 4-holes design makes the loop inserted through the reserved hole intraoperatively to experience the sense of turning loop.
Inquiry now

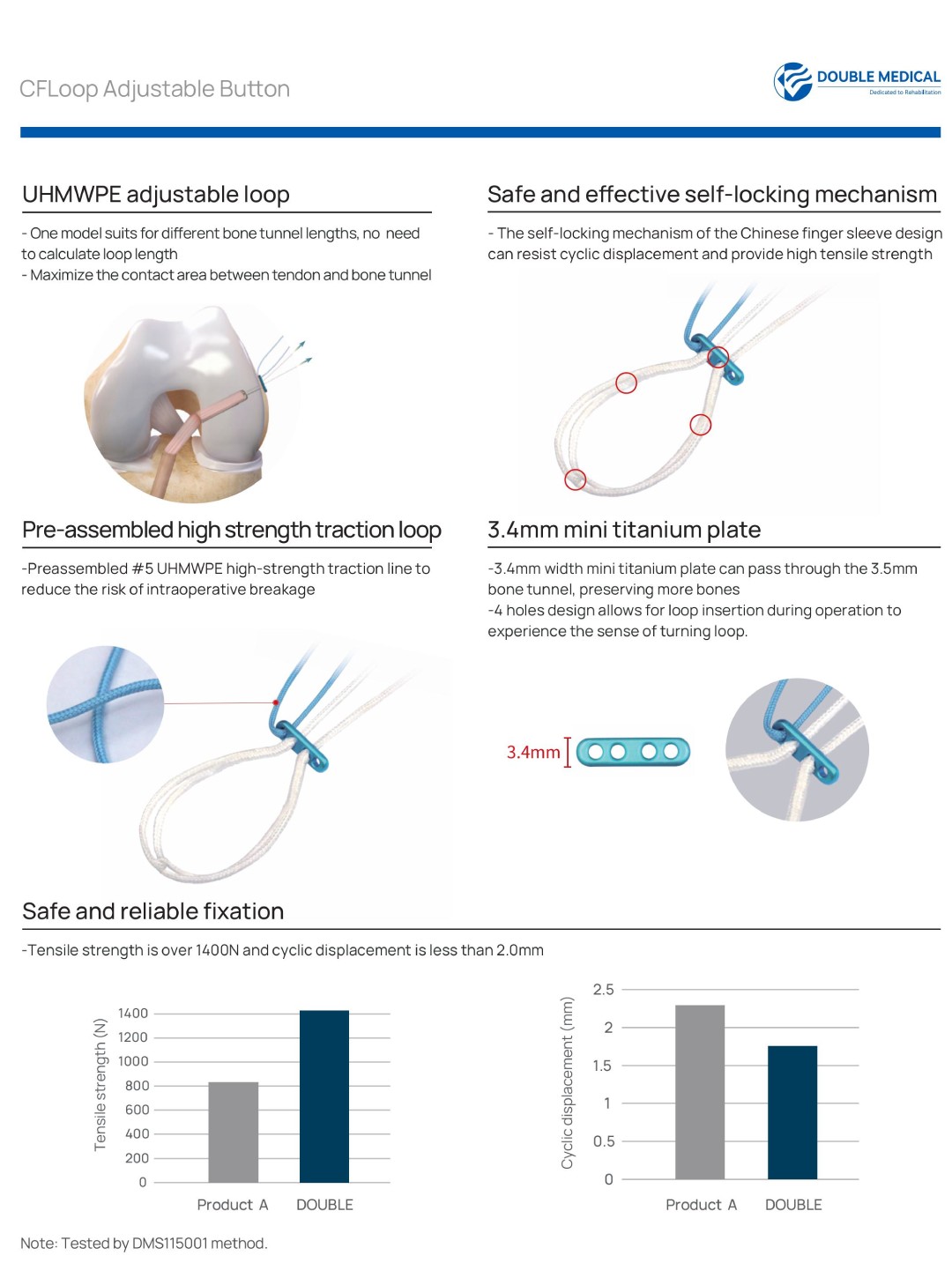

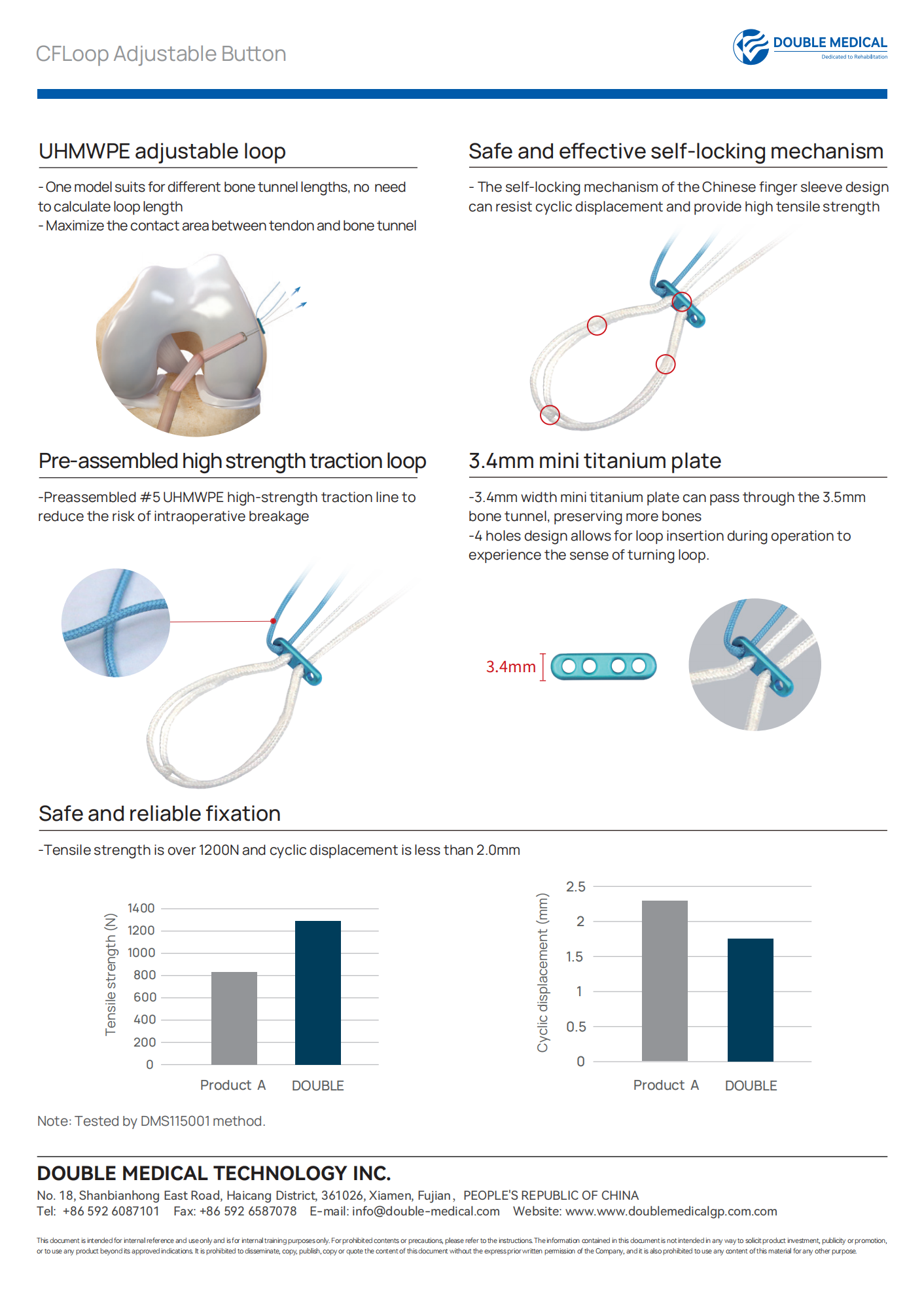

  • Product Detail

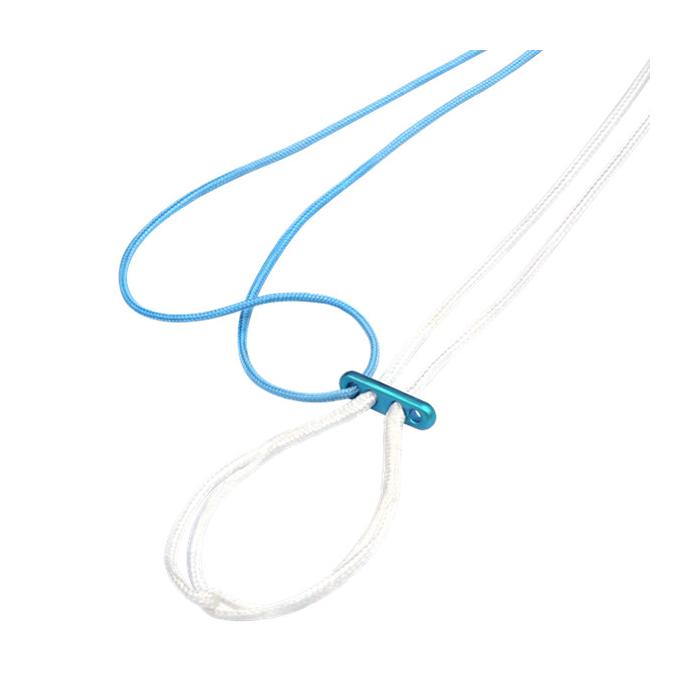

Ultra-high molecular weight polyethylene adjustable loop

  • One version meets different bone tunnel lengths, no need to calculate loop length.

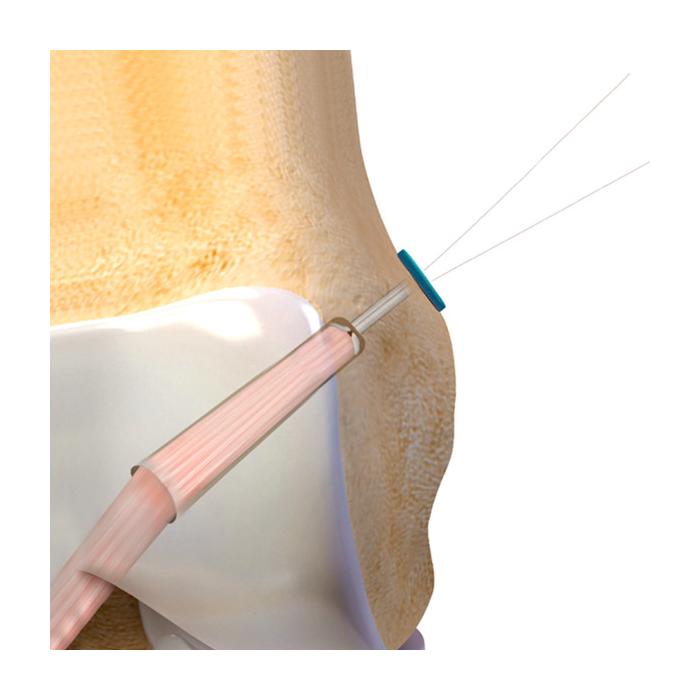

  • Achieve the largest contact area between tendon and bone tunnel.


Preassembled high-strength traction line
  • Preassemble #5 UHMWPE high-strength traction line to reduce the risk of intraoperative breakage.


Safe and effective self-locking mechanism

  • The self-locking mechanism designed by the Chinese finger sleeve can resist cyclic displacement and provide high tensile strength.


3.4mm Mini titanium plate

  • The mini titanium plate with 3.4mm width can pass through the 3.5mm bone tunnel to retain more bone.
  • 4-hole design makes the loop inserted through the reserved hole intraoperatively to experience the sense of turning loop.


Safe and reliable fixation

  • The tensile strength is over 1400N and the cyclic displacement is below 2.0mm
