ACL Reconstruction Solution

Name: CFLoop Adjustable Button,Medical Device Manufacturers -Double Medical
Brand: Orthopaedics

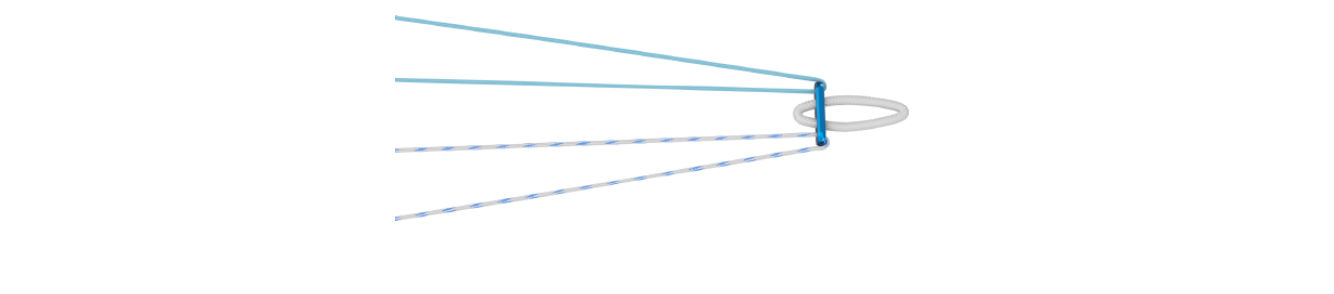

The mini titanium plate with 3.4mm width can pass through the 3.5mm bone tunnel to retain more bone. And 4-holes design makes the loop inserted through the reserved hole intraoperatively to experience the sense of turning loop.

Product Detail

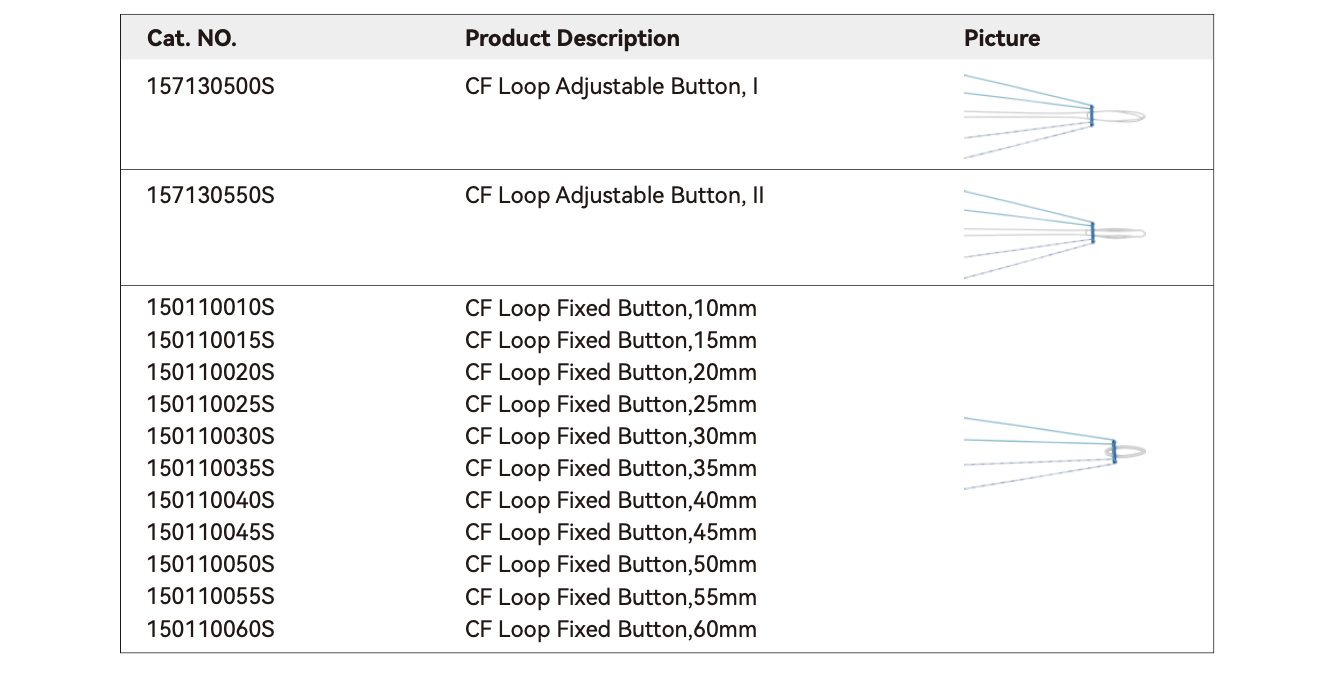

ACL Reconstruction Solution – Femoral Fixation

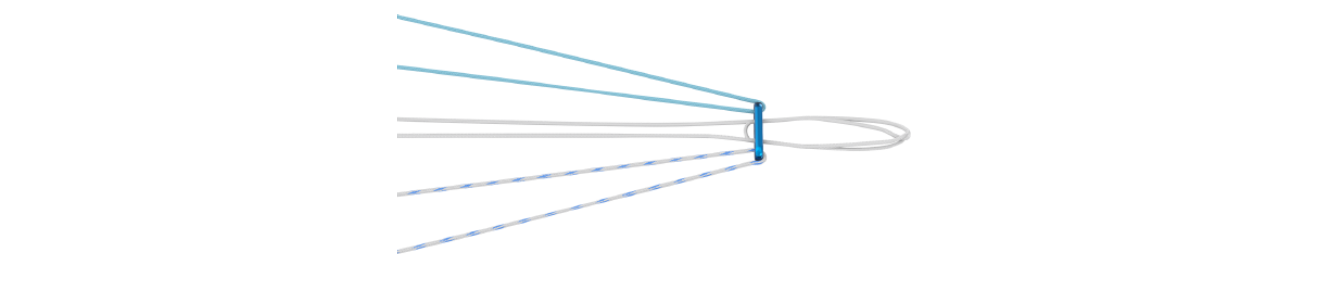

01.CF Loop Adjustable Button, I

• Adjustable Loop Design: A single size adapts to different bone tunnel lengths without

requiring loop length calculations.

• Chinese Finger Trap Mechanism: Provides a secure self-locking effect, resists cyclic

displacement, and ensures high tensile strength.

• Pre-loaded High-Strength Suture Tapes: Facilitate easy suture management and loop

reversal.

• 3.4mm Mini Titanium Plate: Enables cortical suspension fixation, maximizing tendon-bone tunnel contact area to promote tendon-to-bone healing.

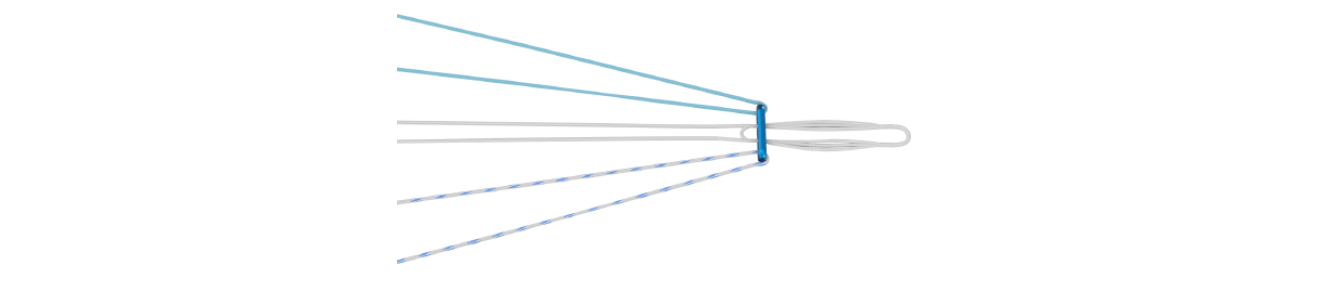

02.CF Loop Adjustable Button, II

• Finger-Trap Suture Loop Design: Three-strand interlocking fixation provides excellent

fixation strength and reduced cyclic displacement.

• Thickened Loop Design: Minimize cutting damage to the graft.

• 4.0 mm Titanium Plate: Stable cortical bone fixation.

03.CF Loop Fixed Button

• Continuously Braided Fixation Loop: High strength, minimal displacement, uniform stress

distribution, and reliable fixation.

• Ranged from 10 to 60 mm: Sufficient length choices meet various clinical tunnel length

requirements.

• Thickened Fixation Loop: Provide better graft loading, and reduce friction and cutting.

ACL Reconstruction Solution – Tibial Fixation

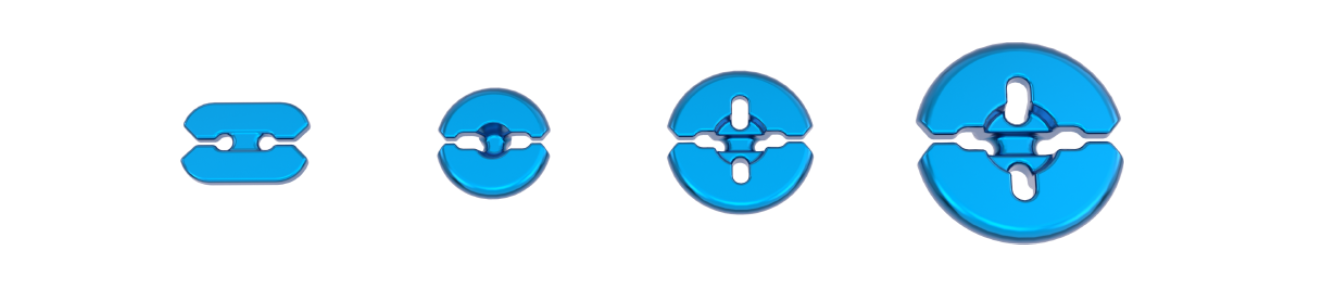

01.CF Loop Attachable Button

• Low-Profile Design: The base enhances sealing, allowing the titanium plate to fit closely

against the cortical bone with a lower profile and more secure fixation. The concave design

enables buried knots, reducing tissue irritation caused by suture knots.

• Multiple Specifications Available: Suitable for bone tunnels of different diameters to meet various clinical needs.

• Compatible with Adjustable Loops: Enables cortical suspension fixation.

• Tibial Suspension Plate: Suitable for tibial narrow tunnels created with retrograde drilling, while the low-profile loop titanium plate is intended for full tunnels.

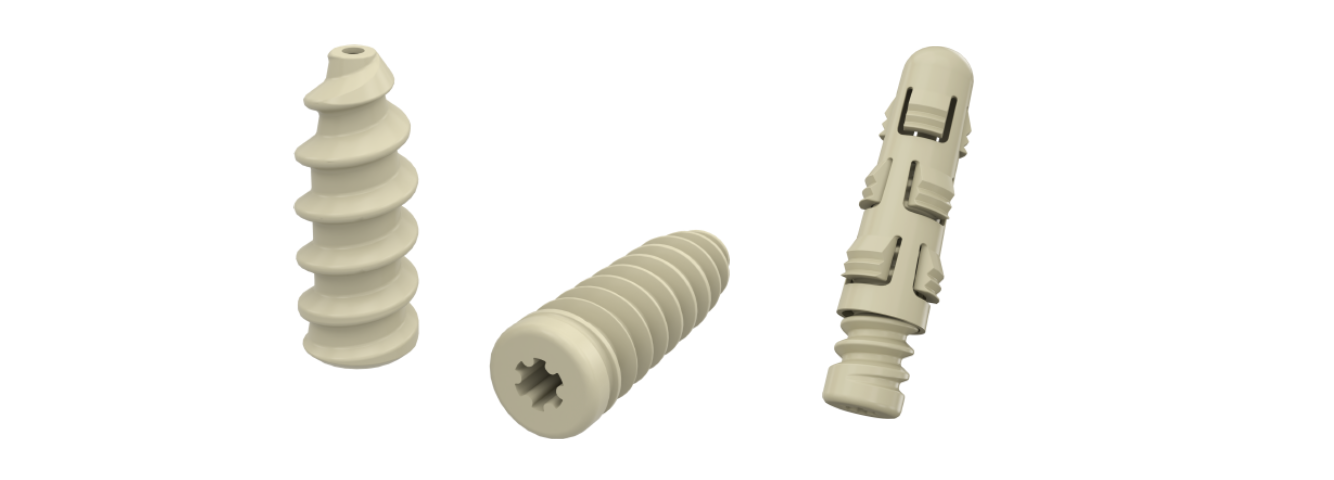

02.PEEK Interference Screw

• Universal Instrument Design: The hexalobe screwdriver is compatible with all interference screws, significantly improving torque and insertion strength.

• Chamfered Thread Design: Rounded thread edges minimize cutting effects on the

tendon.

• Blunt Screw Tail Design: Reduces tendon cutting during fixation while enhancing fixation

strength and overall stability.

• PEEK Material Screw: High strength and excellent biocompatibility.

• Interlocking Fixation Between Tendon and Threads: Effectively increases pull-out resis-tance.

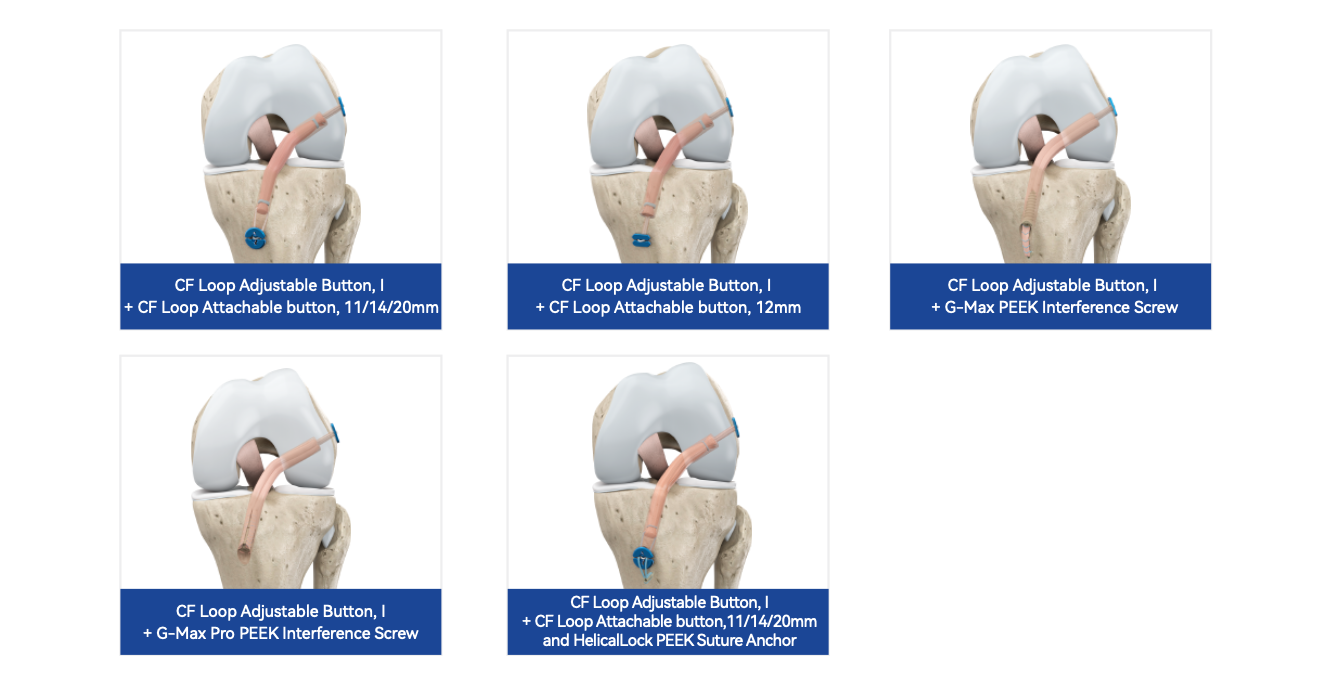

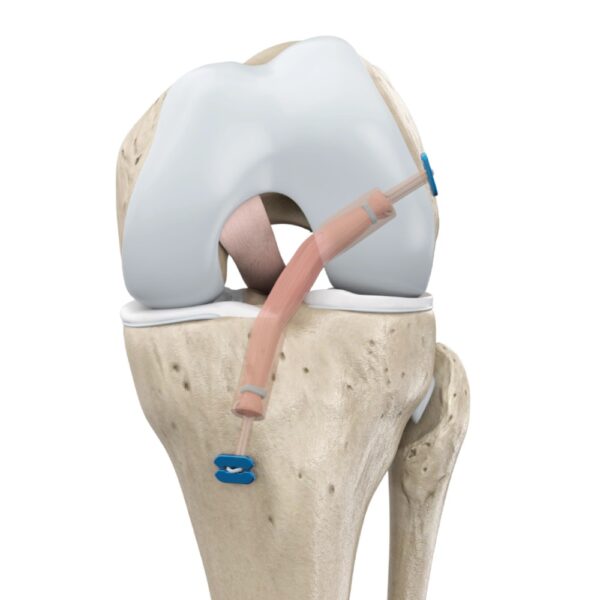

03.Choice of Fixation Methods for Cruciate Ligament Reconstruction

When used in combination with Double-Medical CF loop button, CF loops, PEEK interference screws, and suture anchors, it enables fixation for cruciate ligament reconstruction.
