Indications:
- Severe foot and ankle deformity
- Arthritis
- Instability and skeletal defects, including but not limited to after tumor resection and neuro-osteoarthropathy (Charcot’s foot)
- Avascular necrosis of the talus
- Failed joint replacement or failed ankle fusion
- Distal tibial fracture and non-unions
- Osteoarthritis
- Rheumatoid arthritis and pseudoarthrosis
Contraindication:
- Active infection
- Peripheral vascular neuropathy
- Young patients

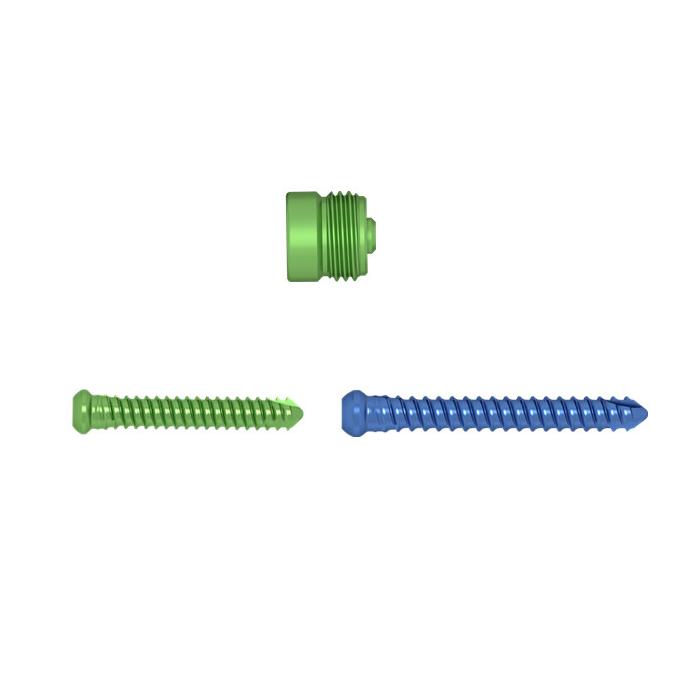

Screws:
- 5.0mm Locking Screw
- 6.0mm Locking Screw
- End Cap

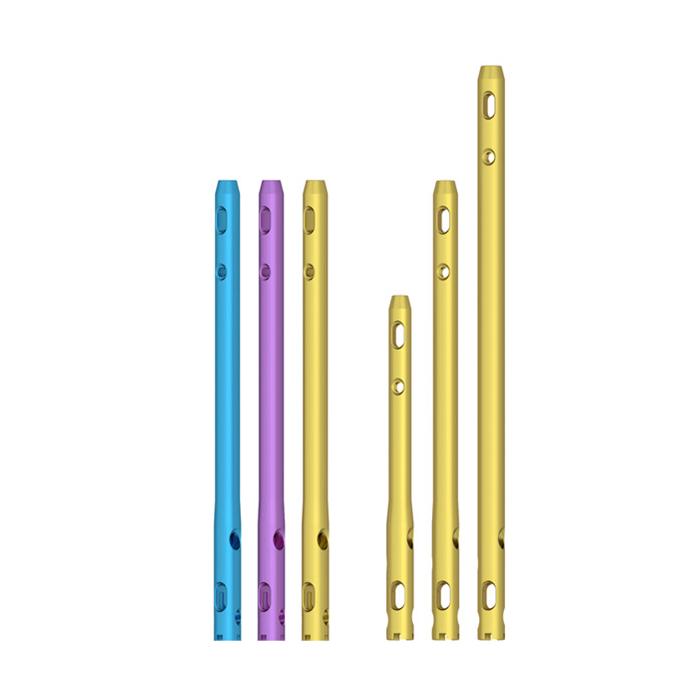

Ankle Arthrodesis Nail:
- Provide different diameters and lengths for more clinical choices.
- Different colours are easy to distinguish
Compression Nut in Distal Sliding Hole:
- Distal sliding hole allows maximal 5mm compression distance.
Static and Dynamic Locking Holes:
- Provide Static and Dynamic Locking Holes in the proximal.

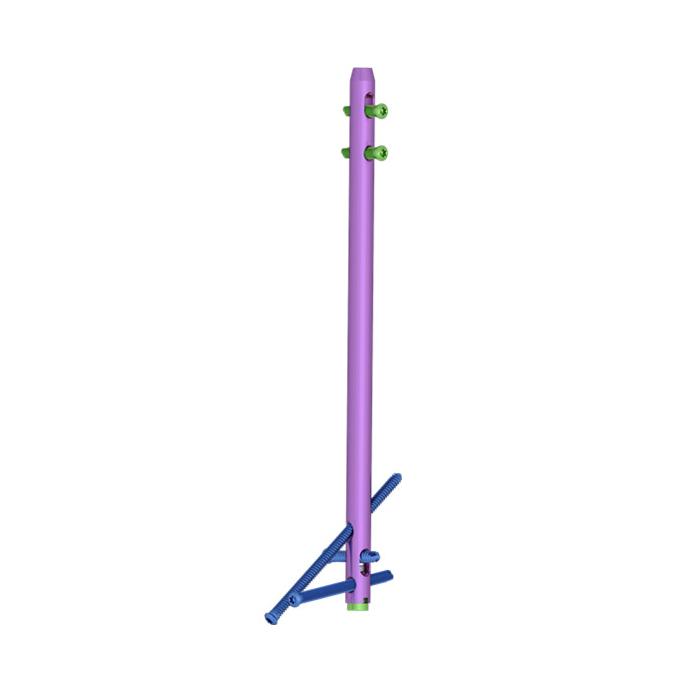

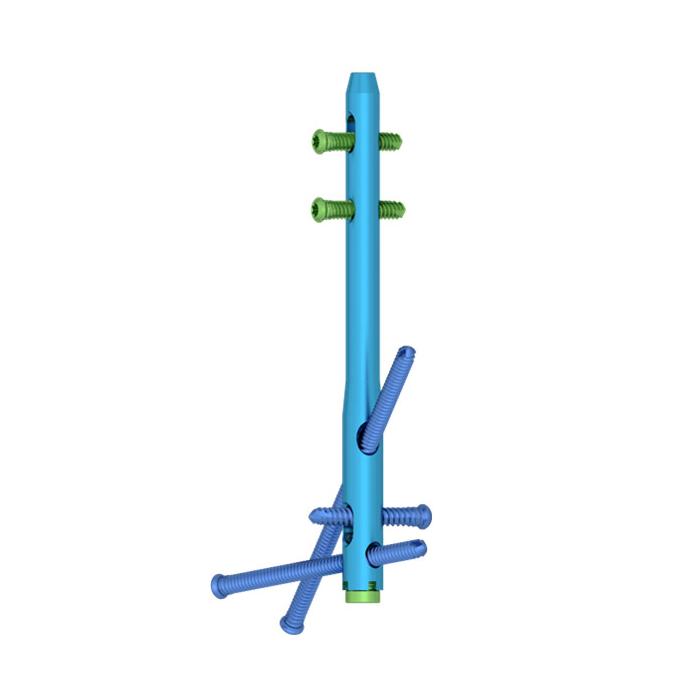

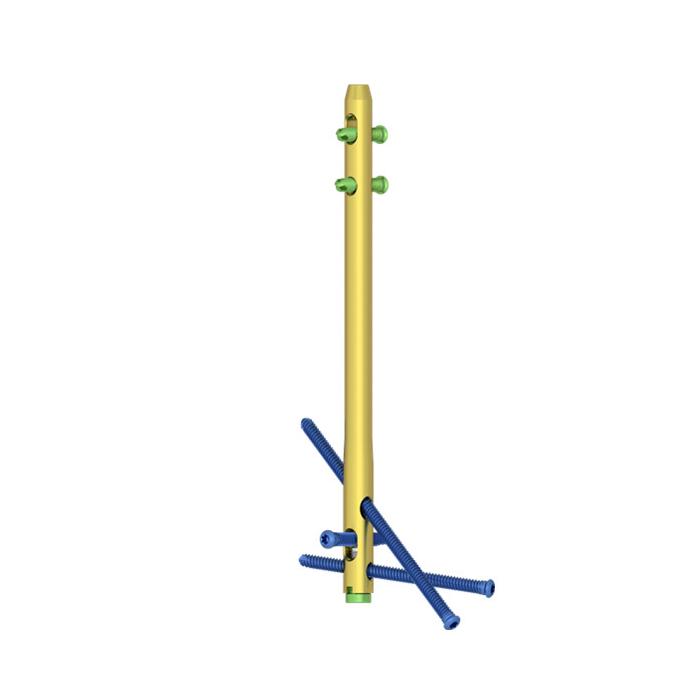

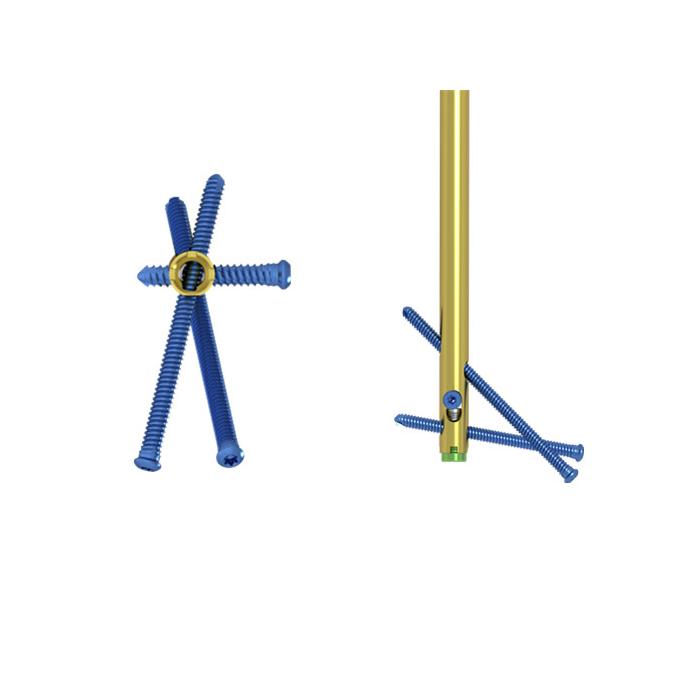

Distal Multi-planer Screws Crossing Locking Holes:

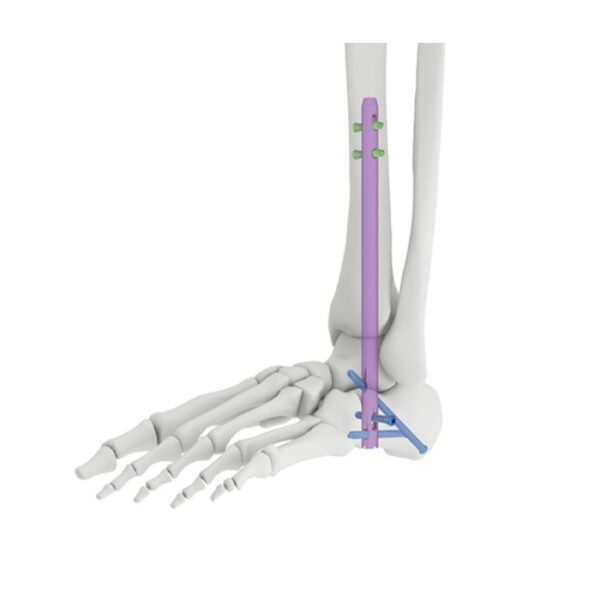

- Cross-joint fixation to enhance the stability of the fusion.
- The screw inserted obliquely into calcaneal anterior process or calcaneocuboid joint to enhance pullout strength and stability.

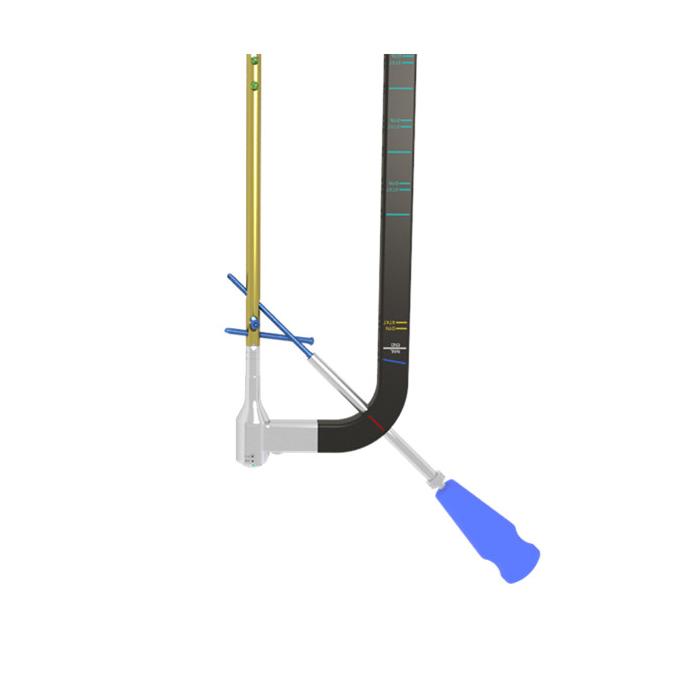

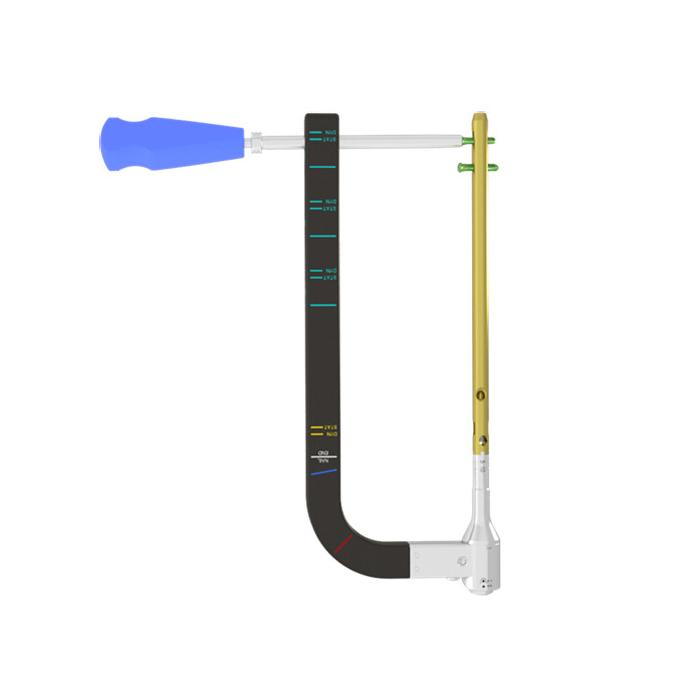

Carbon Fiver Aiming Shaft:
- One piece of Aiming shaft which is made of carbon fiber material ensures locking accuracy.
- Simplify operation process and shorten operation time.
Locking screws:
- Self-tapping groove design, for easier insertion.
- Torxdrive recess of screw head design to reduce screw loose.
- Proximal dynamic and static holes mach with 5.0mm locking screw.
- Three distal crossing holes match with 6.0mm locking screw.
End Cap:
- Prevent soft tissue from growing in.
