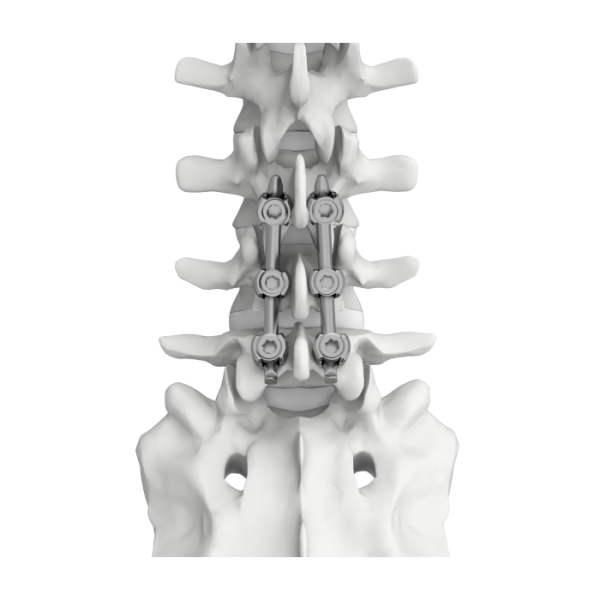

Hobbit Spine 5.5/6.0 System

HOBBIT Spine include 5 systems: 1. Hobbit Spine 5.5/6.0 System 2. Hobbit Posterior Cervical 3.5/4.0 System 3. Hobbit MIS System 4. Hobbit Derotation System 5. Hobbit Spine 4.75 System
  • Product Detail


Indication:

  • Trauma
  • Tumor
  • Stenosis
  • Deformities
  • Pseudarthrosis
  • Spondylolisthesis
  • Failed previous fusion
  • Degenerative disc disease


Instrument Set:

  • Universal Pedicle Screw Instrument Set
  • Hobbit 5.5/6.0 Instrument Set
  • Hobbit 5.5/6.0 Optional Instrument Set


Features:

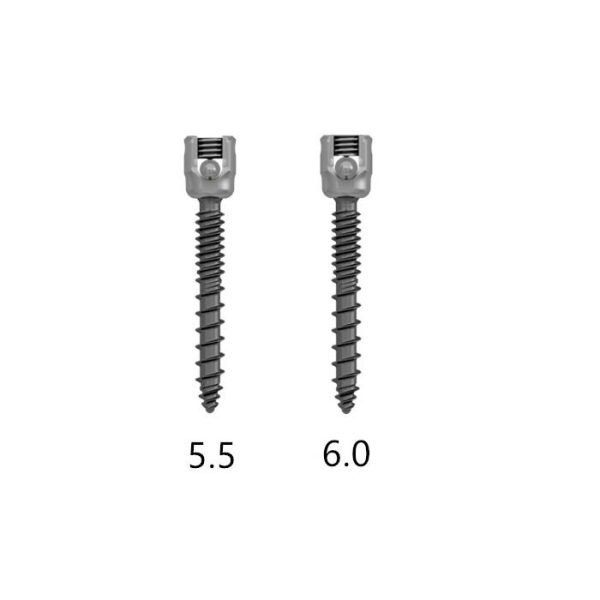

Compatible with 5.5/6.0 System, higher Fixation Strength

  • Secure assembly
  • Both 5.5mm and 6.0mm rod can apply to the same pedicle screw


Thread Design

  • Proximal thread for cortex bone: enhance pedicle fixation
  • Self-tapping thread of screw tip: easy insertion of the screw into the pedicle; non-tapping design of the slot without damage to the pedicle wall makes the bicortical fixation safer (except S2AL)
  • Double-threaded design: improve insertion speed


Screw Head Design:

Minimum volume of screw head


  • Avoid difficulty of postoperative suture and complications such as wound pain caused by high profile
  • Reduce irritation to the adjacent bone structure.
  • CBT avoids collision between screw heads.




Screw Arm Design

  • Rectangular thread: reduce cross threading
  • Negative angle of thread: avoid distraction and rupture of the screw arm
  • Blunt design of the beginning part: automatic alignment can be realized without the alignment sleeve

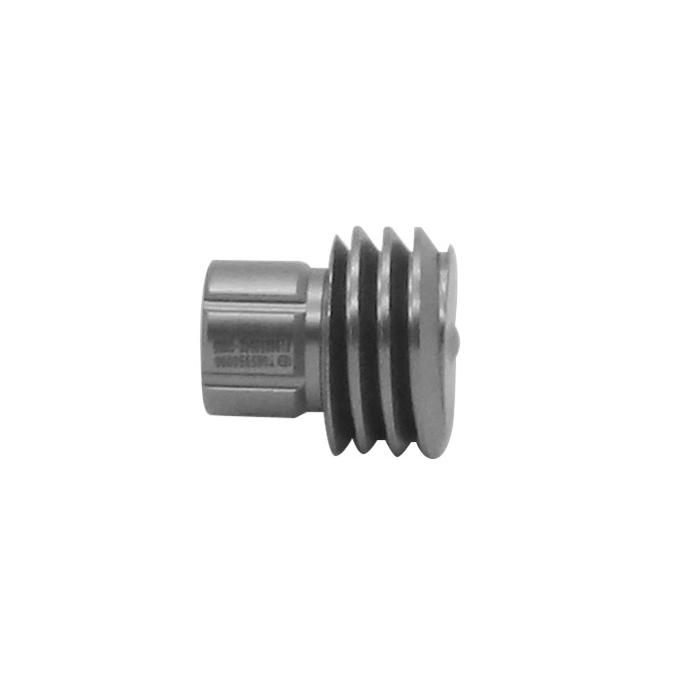

Screw Nut Design:

  • Snap-off screw nut: avoid slippery
  • Protruding point: increase the compression between the screw nut and the rod and improve the locking ability
  • Sand blast: Anti-reflection; Increase friction and reduce the risk of detachment.

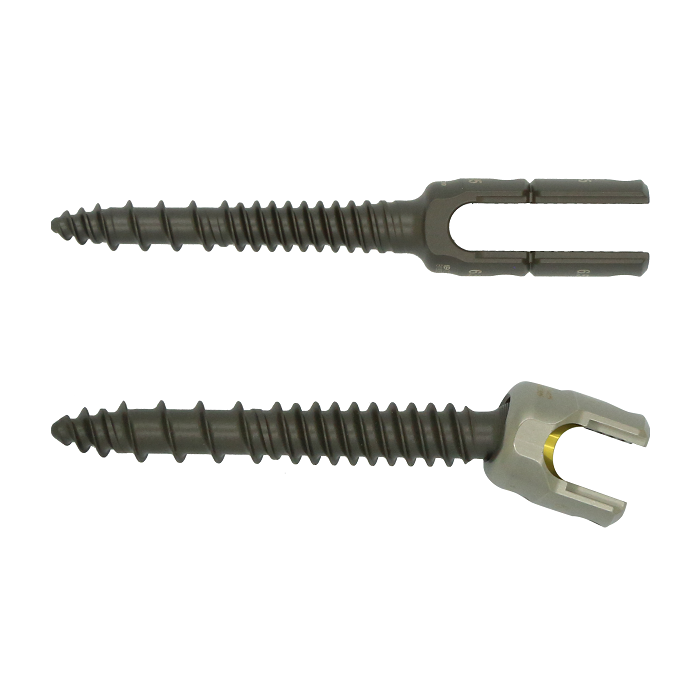

Uni-Planar Pedicle Screw

  • The best pedicle screw for derotation
  • Easy insertion of rod
  • Fixed plane for better correction

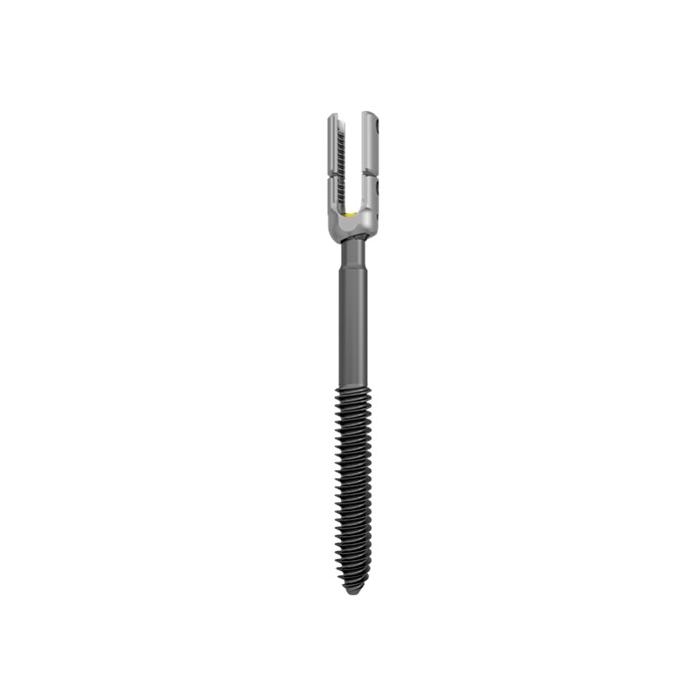

S2AI Screw

  • A kind of spinal pelvic internal fixation
  • The screw passes through S2s acralwing, sacroiliac joint and iliac bone plate
  • In alignment with the S1 pedicle screw, no need for a switch when connecting with S1
  • Low profile design, low risk of exposure of screw end
  • Triple cortical fixation



Double-headed Pedicle Screw

  • Spine osteotomy
  • Revision surgery
  • Lumboscral Fixation
